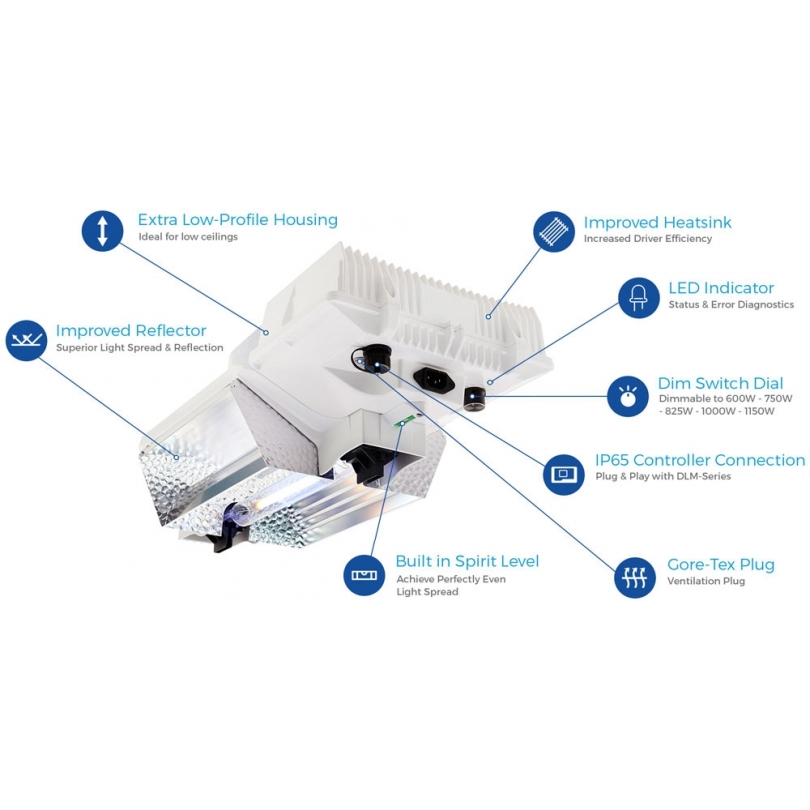

Description

Extra Low-Profile Housing Ideal for low ceilings
Improved Heatsink Increased Driver Efficiency
LED Indicator Status & Error Diagnostics
Dim Switch Dial Dimmable to 600W - 750W - 825W - 1000W - 1150W
IP65 Controller Connection Plug & Play with DLM-Series
IP65 Controller Connection Plug & Play with DLM-Series
Gore-Tex Plug Ventilation Plug
Built in Spirit Level Achieve Perfectly Even Light Spread

DIMENSIONS:
571 X 284 X 178mm
22.5 X 11.2 X 7.0 INCH

WEIGHT:
5.4 kg / 11.9 lbs

DIMMING WITH SWITCH:
600W – 750W – 825W – 1000W – 1150W
DIMMING WITH CONTROLLER:
600W – 1150W

FREQUENCY: 50/60 Hz
TYPICAL CURRENT: 4.5A @ 240V/1000W
MAXIMUM CURRENT: 9.5A @ 120V/1150W
INRUSH CURRENT: ≤ 40A
POWER FACTOR: ≥ 0,98

INPUT VOLTAGE: 120 ~ 240V
INPUT VOLTAGE RANGE: ± 10%
RATED POWER: 1060W
