600W Dimlux Expert Series EL UNF Light Kit

600W Dimlux Expert Series EL UNF Light Kit

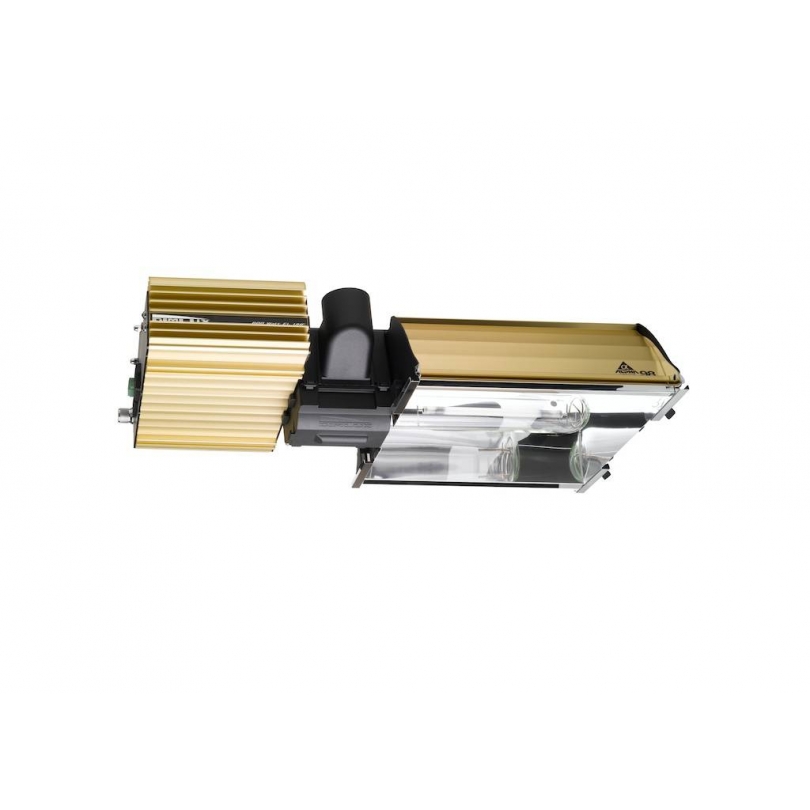

DimLux Expert Series 600W EL UHF NanoTube. The DimLux Expert Series 600W EL UHF electronic ballast is a full 600W 400V EL UHF fixture. The DimLux Expert is a series of complete fixtures including the Alpha Optics reflector. This reflector is designed according to the Single Bounce Clear Sight (SBCS) principle and is equipped with Miro Silver mirrors. As a result the highest possible efficiency (98%) of all available horticulture reflectors is achieved.

Provided with adjustable side reflectors for better overlap and to minimize wall losses. Due to the open design of the reflector the lamp is passively cooled which is a benefit for the life and efficiency of the lamp. There is a 50mm socket on the reflector which can be used to significantly reduce the room temperature by actively extracting the air. There are also optional add-on reflectors available which be placed to minimize the wall loss even more. This reflector is replaceable.

By using a Nanotube the air can be extracted in parallel from the fixture, the lamp will always maintain the ideal temperature in order to maximize efficiency and life span. It is possible to achieve 20% lumens boost, this is only possible if the lamp is actively cooled.

Suitable for: 600W 400V EL UHF

Output: 300-690 Watt

Connection: 230V

Overdrive: 15%

Soft Start: Low inrush for use without Maxi Controller and Zero start (no inrush) for use with the Maxi Controller

Soft Dim: Yes

Dim Button: 7 dim levels and off mode. Can be switched on and off via the Maxi Controller as wel as stepless dimming

Ultra High Frequency: Yes

Diagnostic LEDs: Yes

Including: Philips Greenpower 600W EL lamp and 4M cable and plug

Nanotube: Yes
